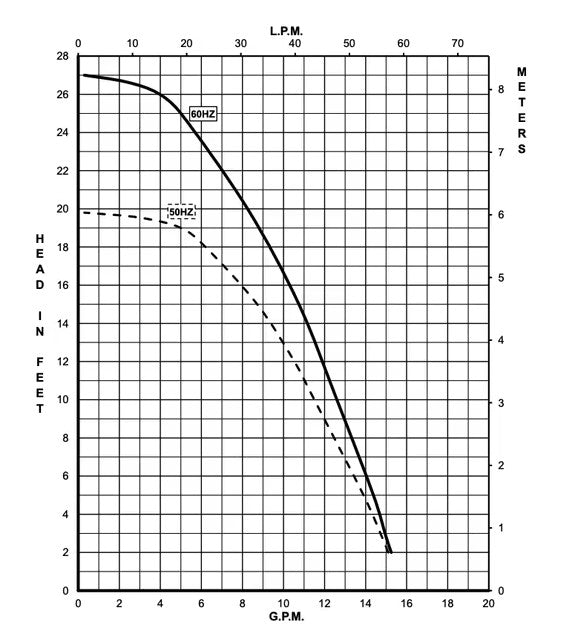

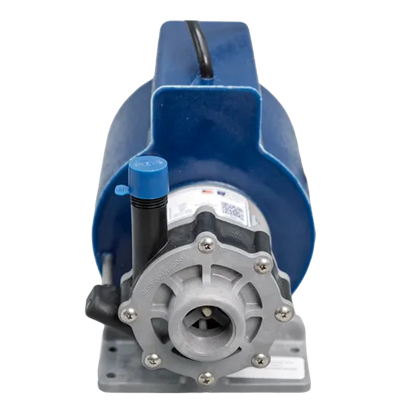

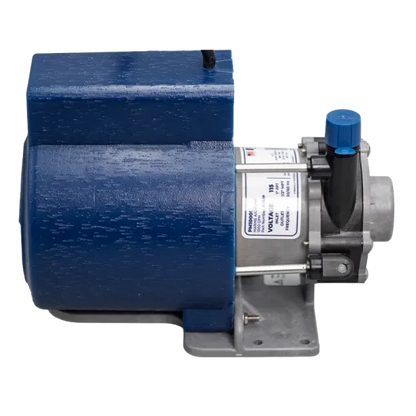

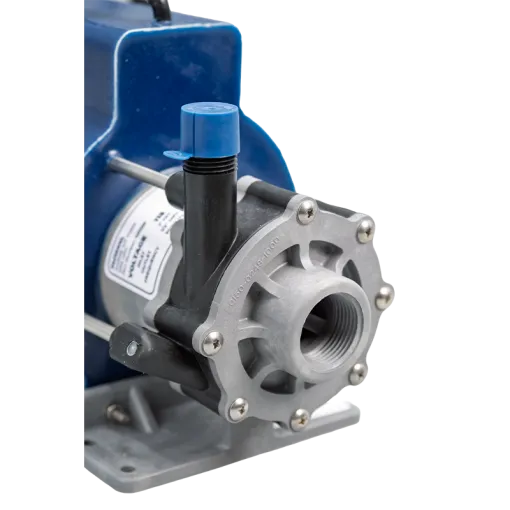

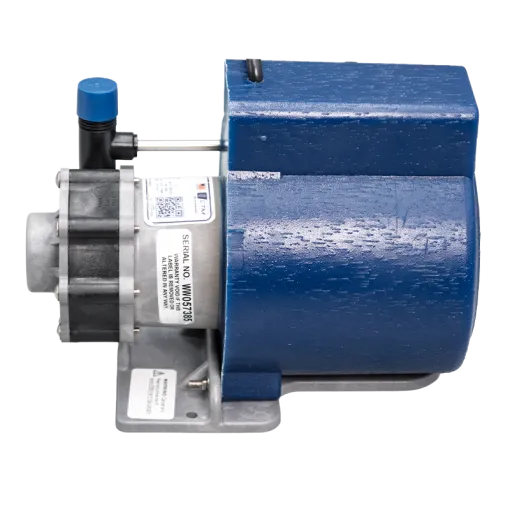

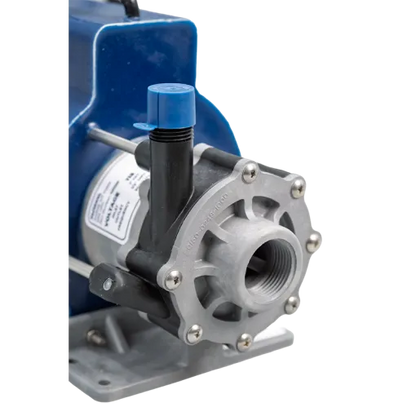

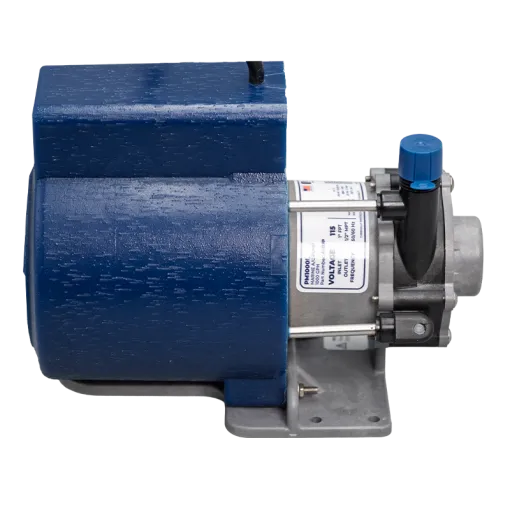

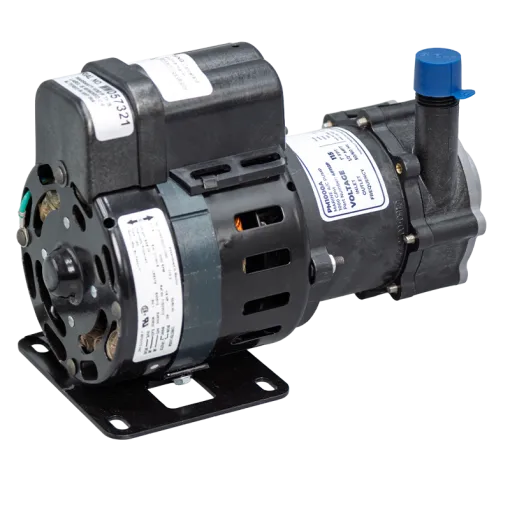

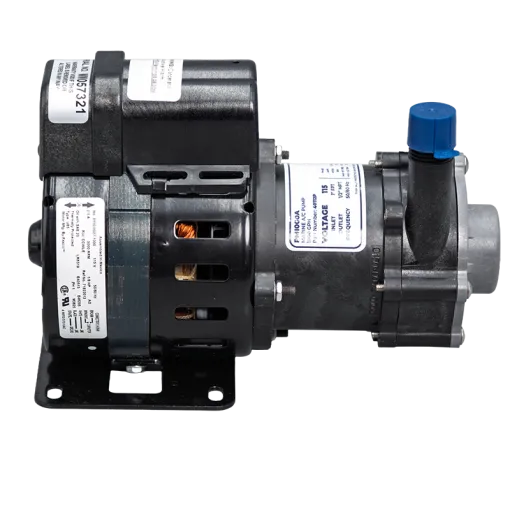

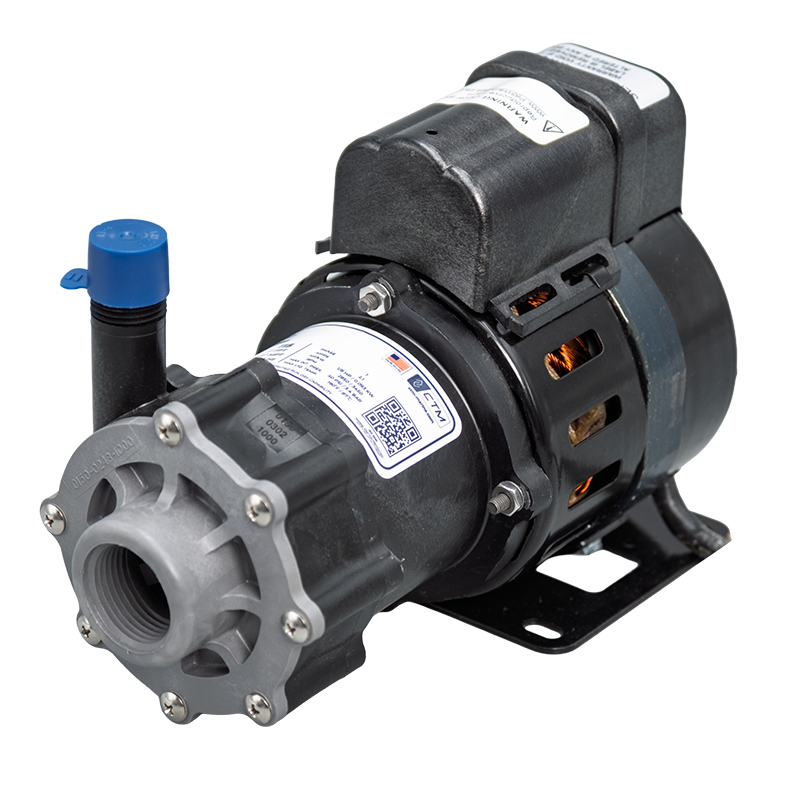

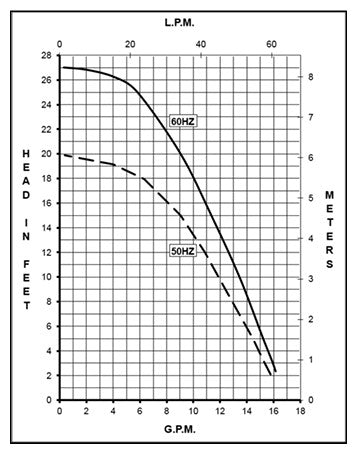

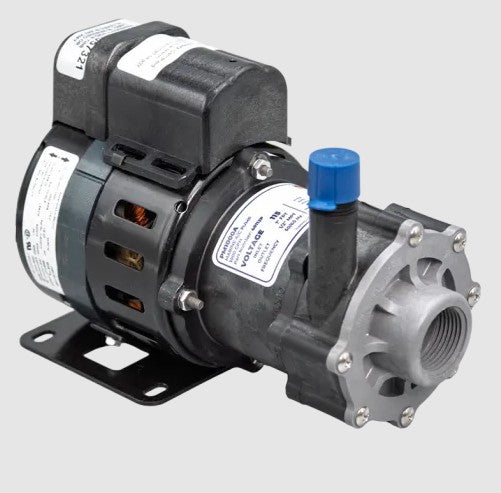

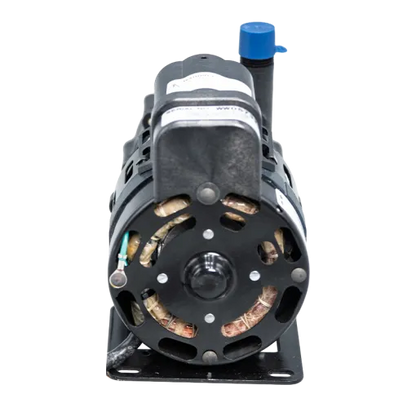

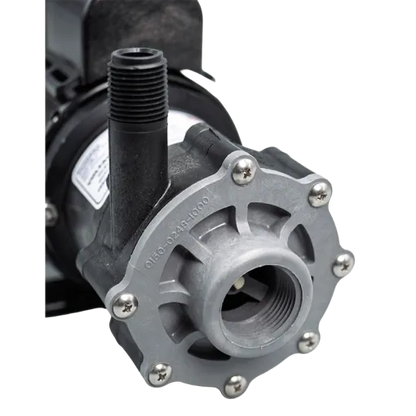

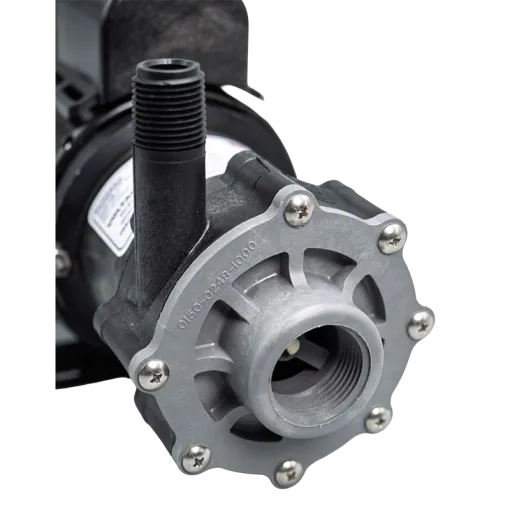

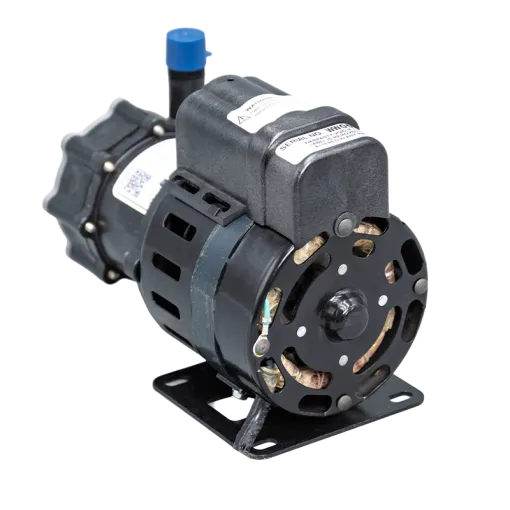

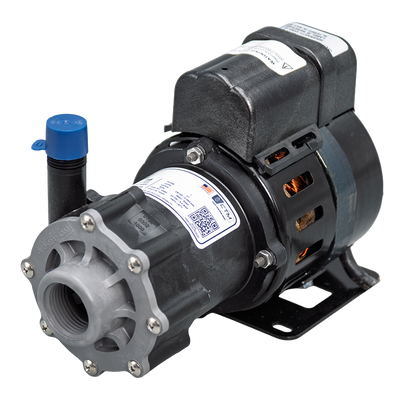

CTM industrial PM1000LH is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 15 gallons per minute at 2 feet, and its maximum head is 27 Feet (or around 11PSI). The PM1000LH pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Stainless Steel, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Noryl, and the Cord are also in contact with the solution. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). Direct replacement for Dometic PML1000 230V Part.
Specifications

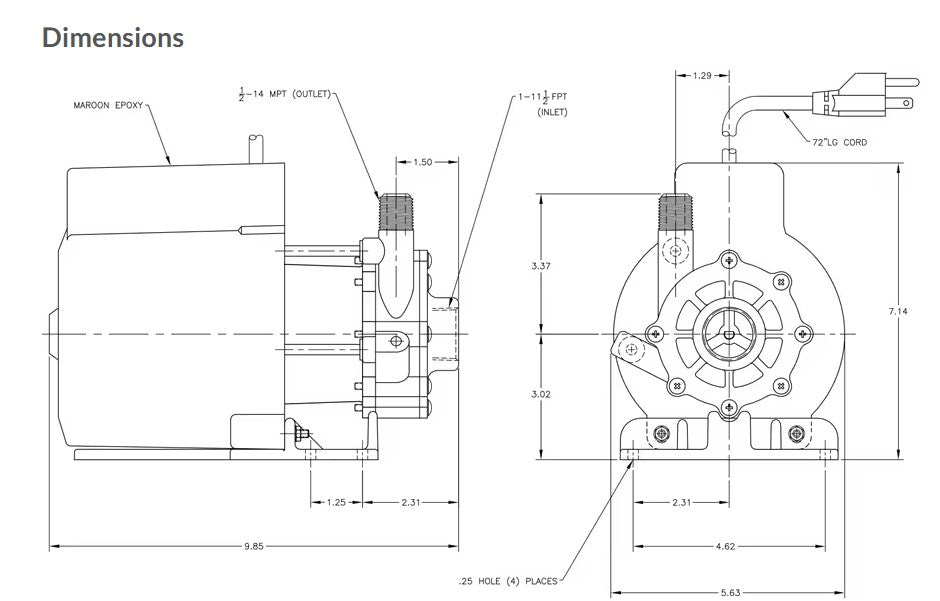

Inlet – Outlet: 1” FPT – 1/2” MPT Max Internal Pressure: 25 psi (172 kPa) Max Liquid Temperature: 130 °F (54 °C) Dimensions (inches): 7.14 x 5.63 x 9.85 Packed Weight (lbs): 17.7
